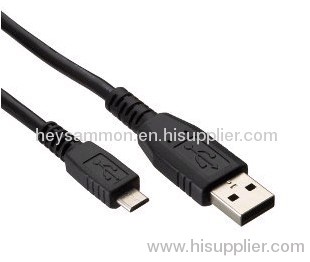

Specifications Micro USB 5P BM TO USB AM USB Cable
1,ROHS,CE,ISO,UL
2,LCP30% G/F UL94V-0
3,PBT30%,Black
4,28AWG/2C + 28AWG/2P

Micro USB 5P BM TO USB AM Cable USB2.0 CABLE

USB2.0 Cable,USB Cable,USB2.0 am/bm

Shell material PVC

o Shell Color/finish WHITE

o Bushing/strain Relief NO

o Contacts Material Brass

o Contact Finish NICKET

o Solder Connections Yes

o Color coding WHITE

o Tip cuts NO

o Ring Cuts NO

o Jacket

Material PVC

o Diameter(mm)of total cable 4.5/5.0

o Color Transparent clear

o Marking

o Brand OEM

o Traceability-rendor ID and Date code Yes

o Directional Arrows n/a

o Polarity Indicator n/a

o Cable

Center condactor

o Wire material Bare annealed copper

o Construction(no/mm) 7/0.12mm + 5/0.15

o Wire Gauge(AWG) 26AWG x 2C + 28AWG x 2C

o Conductor Resistance n/a

o Dielectric Insulator

o Dielectric material PE + PVC

o Outer conductor tape shielding Yes

o Tape shielding material AL-Tape

Housnig Material: LCP 30% G/F UL94V-0 AND PBT 30% G/F 94V-0

Contact Material: Brass

Contact Plated: Gold 15U on Contact Area Other 100U MIN.Lead

Current Rating:       0.5Amp

Contact Resistance:    0.1 ohms/m.

Insulator Resistance:   100Megohms Min.

Dielectric Withstanding: AC 250V for 1 minute

Operating Temp.:     0°C~+60°C

Shell Material:     Brass

Shell Plated:       Ni 50u Min.

Wire Size[AWG]:   28AWG/2C+28AWG/2P
